Simpson LSSR Rafter Hanger Connection Notes

Description:

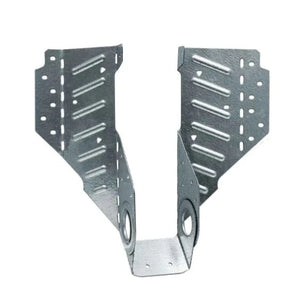

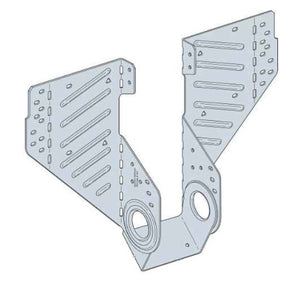

The Simpson Strong-Tie LSSR26Z Field Adjustable Rafter Hanger can be installed after the rafter has been tacked into place. A versatile hanger, it is field adjustable for skews up to 45° and features an innovative hinged swivel seat that adjusts up to a 45° slope.

Finishes Available:

ZMAX

Joist Size:

1-1/2"

Dimensions:

1-9/16" (W) x 5-3/8" (H) x 2-1/2" (A)

Gauge:

18 GA.

Note:

No stainless options available for this model.
